You are on the right page if you need a 100% original replacement for a broken Honor 8x display (or touchscreen glass) with the middle frame. Replacing the broken display with a new Honor 8x display combo is effortless, but the main problem arises when the phone gets damaged beyond normal. In several cases, the phone’s outer body gets curved, and installing a new display in such a frame is no longer possible.
What is the meaning of the Honor 8x display combo with a frame?
The most simple meaning of this is a display and touch screen unit pre-assembled in the outer body. The frame is the phone’s metal ring, which holds power and volume on/off buttons. This outer frame is also called a bezel or middle frame. Buying a combo with a frame will resolve all the issues if this frame is damaged.
A combo is a complete unit of display and touchscreen glass; the frame is the base for pasting this combo. It is impossible to install a display if a frame is unavailable or in the right shape. A curved frame doesn’t provide a flat surface for installation, so you need a fresh new structure. The part comes the same as shown in the photos below, and this is the entire front half of your phone, completely new.
Honor 8x Display Specifications
Package Contents | |
In The Box | 1 Piece of Original Honor 8x Display Combo/ Folder |
Display Condition | Brand New |
Display Specifications | |
Display Quality | 100% Original. |
Display Size | 6.50″ |
Display Type | IPS LCD Display with Touchscreen Glass. |
Display Resolution | 1080 x 2340 Pixels |
Supported Model Name | Honor 8x |
Supported Model Number | JSN-L42 |
Touchscreen Glass type | Corning® Gorilla® Glass 3 Protection. |
Manufacturer | OEM (Original Equipment Manufacturer) |
Warranty Details | |
Warranty Resolution | Return / Replacement |
Warranty Condition | Unused Returns Only (No returns after pasting/installation) |
Warranty Details | Test the display in 30 days after delivery without installing it. |
Frequently Asked Questions
Q: How much does buying a new Honor 8x display with a frame cost in India?
A 100% original Honor 8x display replacement with the middle frame costs around Rs 4200-4500. If you buy a first copy screen replacement, the combo costs about Rs 1300-1500 in India, but such replacements don’t include a frame. A duplicate screen always arrives without the frame and battery; their quality is around 40% of the original display’s quality.
Q: What are the benefits of buying a display combo with a frame?
Purchasing a display replacement with an outer frame is not mandatory, but you get additional benefits if you do. These are the benefits of buying a frame display folder of Honor 8x :
- You don’t need to paste/fix the display in the frame manually.
- Removing the broken display assembly from the old frame is not needed.
- It is easy to fit a with-frame display because it comes pre-assembled.
- The front metal body of your phone completely renews, including the side buttons (Power and Volume Buttons).
- A factory-fitted display lasts much longer than a manually pasted display.
The final buying decision depends on your spending capacity and the perceived value of your phone. You should invest in quality spare parts to restore your phone’s brand-new condition to avoid unforeseen issues. Original spare parts are always reliable, and you’ll never have trouble.
Q: How do I install the Honor 8x display with the outer frame?
Installing the Honor 8x display with the outer frame is difficult, and we don’t suggest you try to accomplish this at home. These are the basic steps for installing the display :
- First, eject the SIM tray and carefully decouple the back glass.
- Don’t pull off the back glass because, underneath the glass, there is a flex cable that you need to disconnect.
- After removing the back glass successfully, you should test the new display first.
- To test the new display, disconnect the old display’s flex, connect the new display to the motherboard, and test it.
- Please note that there is no need to remove the old broken display, as you can test the new display on the phone’s backside.
- Once you’ve verified the new display, it’s time to transfer the motherboard, battery, and other components to the new frame.
- Shift all parts from the broken combo into the new combo and make the necessary connections.
- Refix the back glass and make the necessary connection to the fingerprint flex.
Please note that we’ve outlined the steps concisely, and you also need basic knowledge if you want to repair it yourself. A better approach would be to seek a technician who does such jobs daily and pay a small fee like Rs 250. It would be a much more hassle-free experience for you.
Q: Is it possible to test and verify the new display before assembling it?
Yes. You can easily test and verify the working condition of the new display before fitting it permanently. You need to connect the new display to the motherboard and turn on the device to test it. Please note that there is no need to remove the screen guard or the protective films from the display when you test the product. Keep the item as it is, and feel free to test it. We also test the products before shipping, and you won’t face any issues.
Q: Which color display should I purchase?
The Honor 8x phone comes in 3 colors: Red, Blue, and Black. It would be best to buy the display according to your phone’s existing color so that everything bends together perfectly. If you buy a Red display for a blue phone, the display will still fit perfectly, but the color combination might not look great. That’s why you should always buy the appropriate color depending on your phone’s color.
Q: What if the new display doesn’t work when testing?
We protect you with a 30-day return, refund, and replacement policy. If you test the display and it doesn’t respond, you can always report the problem to us, and we’ll provide a resolution. It would be shocking to us if you faced any display issues because we test each display before shipment, and defective products are never the case. To be eligible for a return or replacement, please keep the products in brand new, unused condition, and don’t remove any screen guard or warranty stickers.

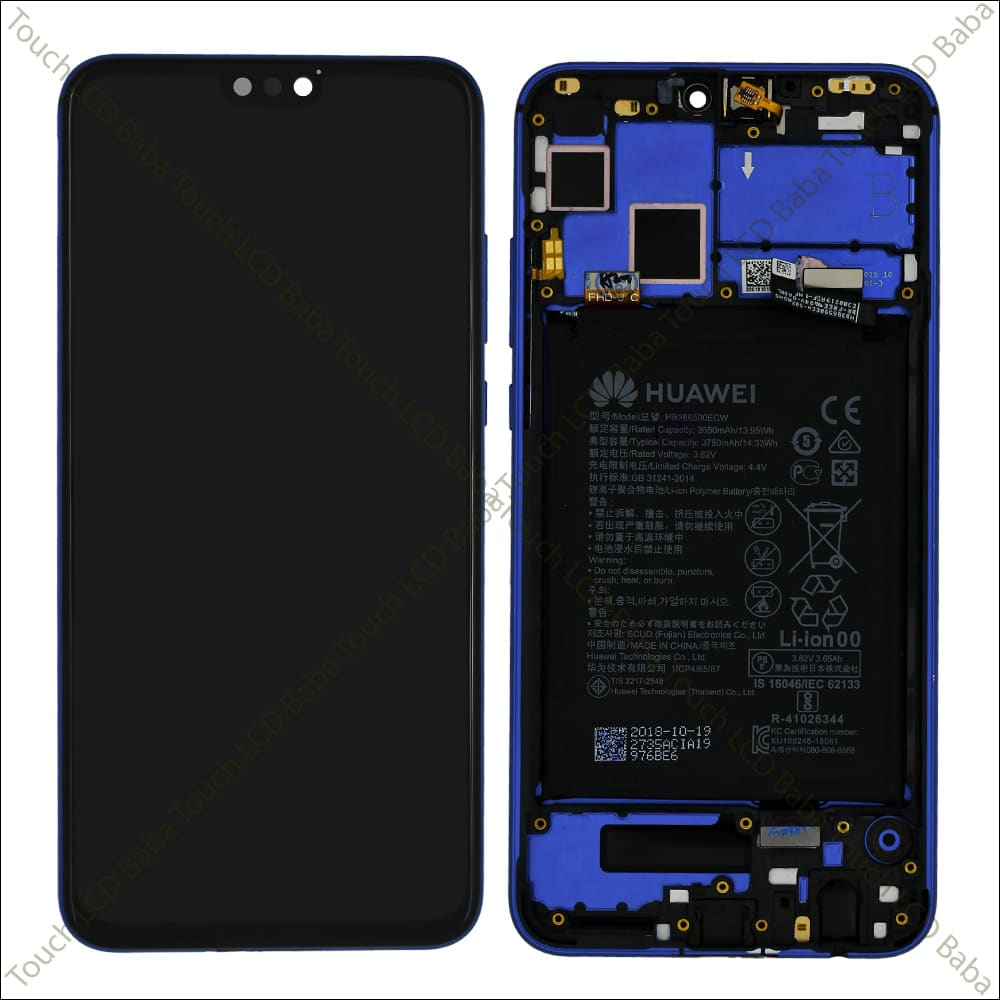

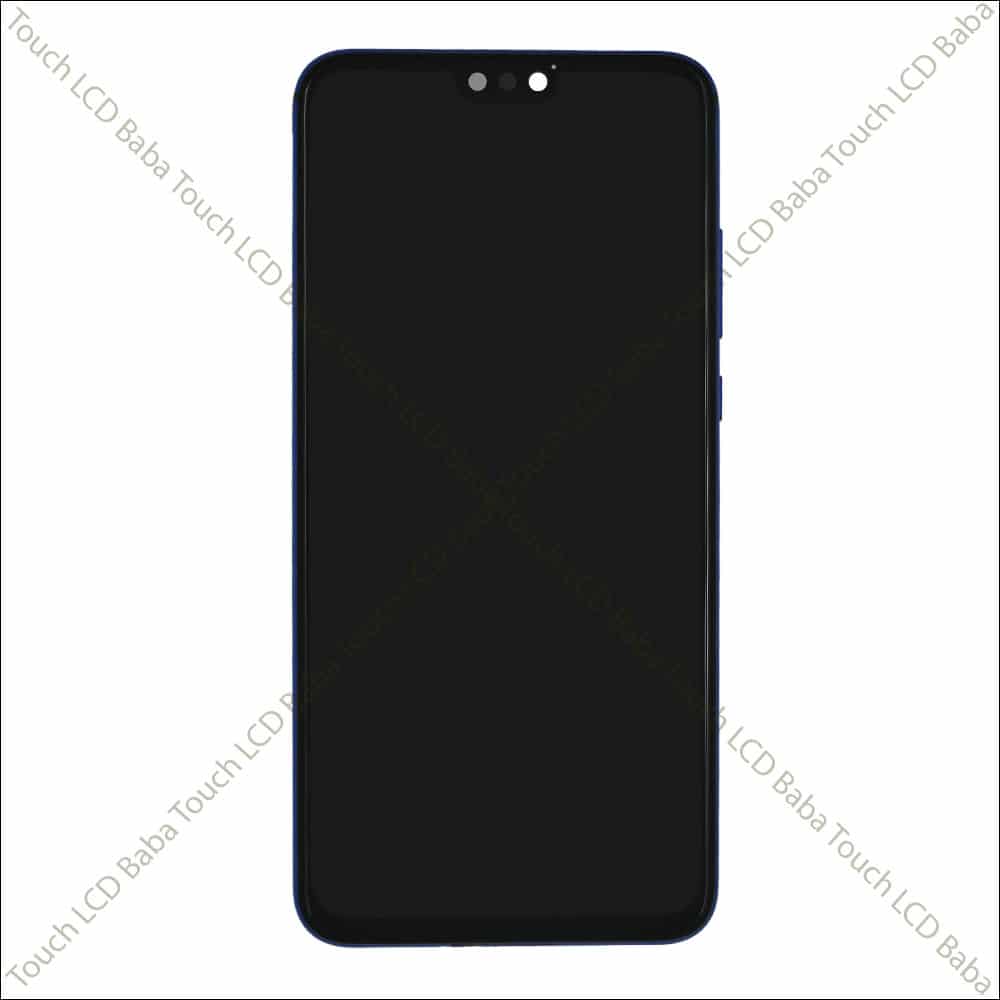

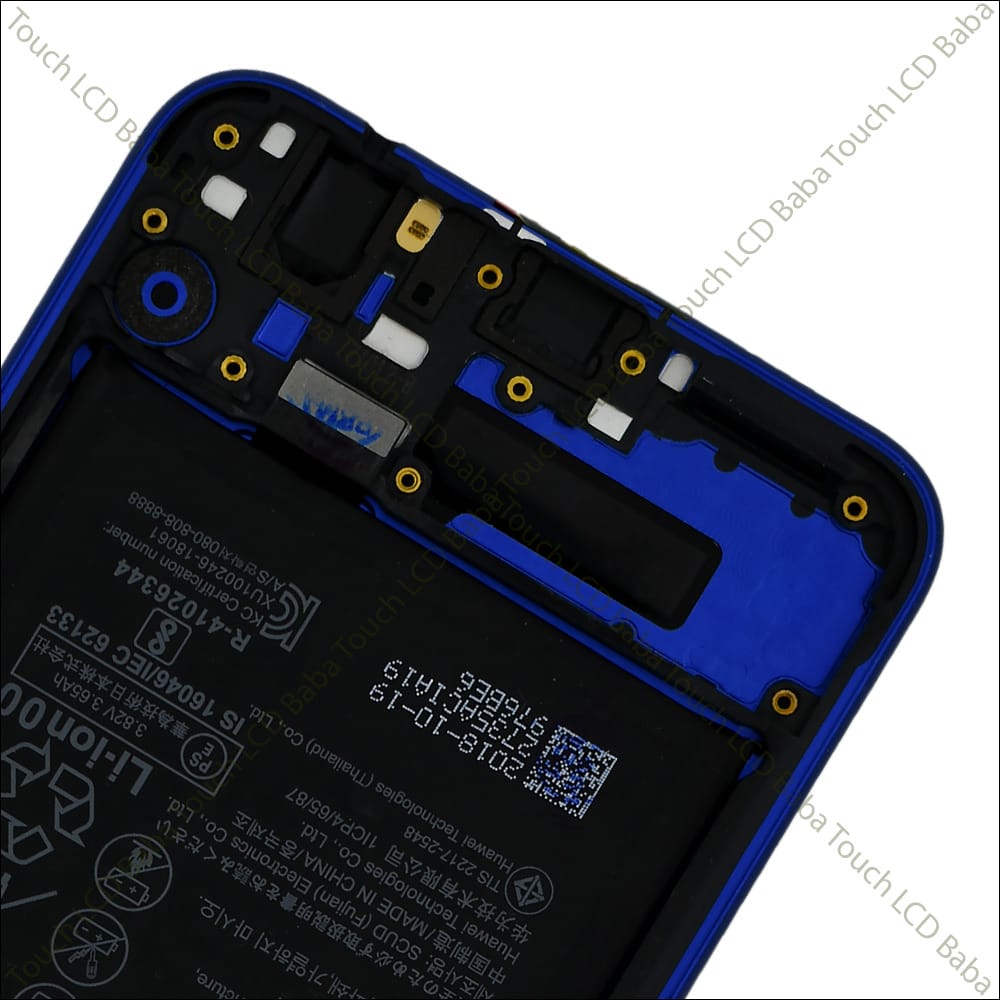

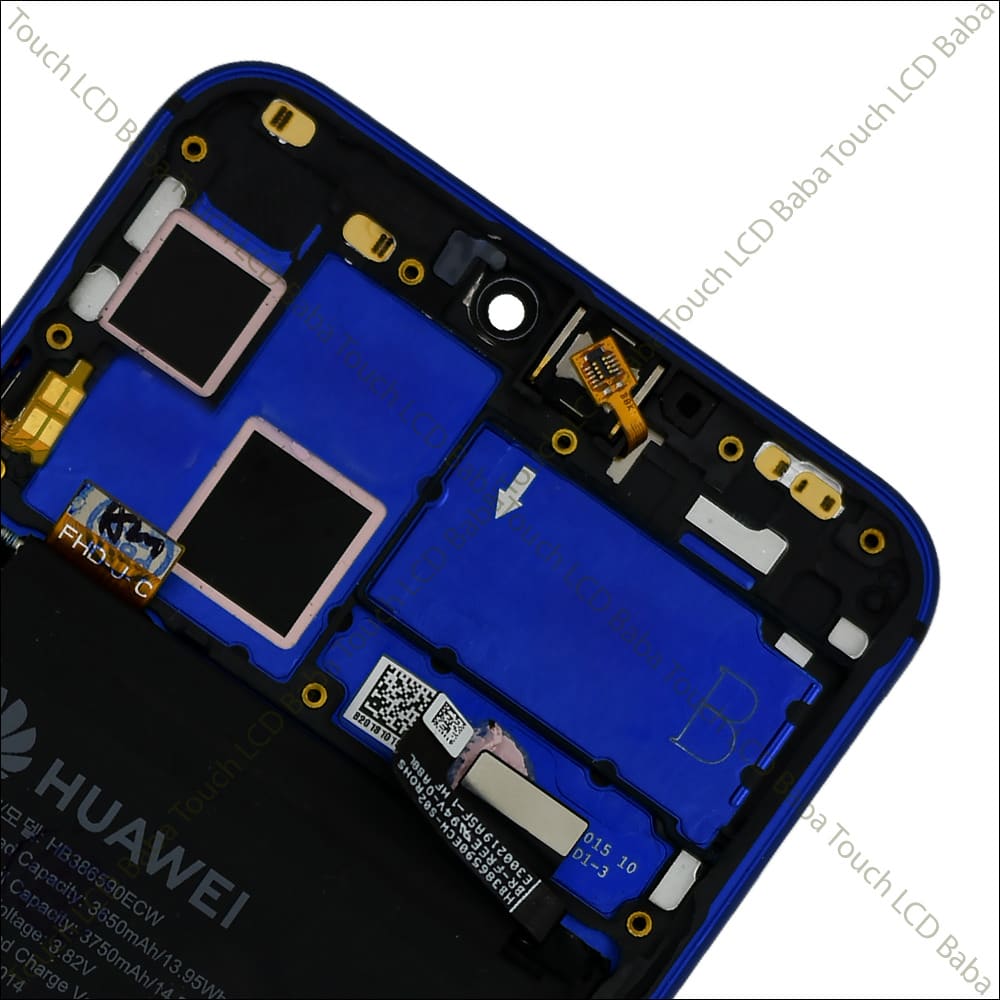

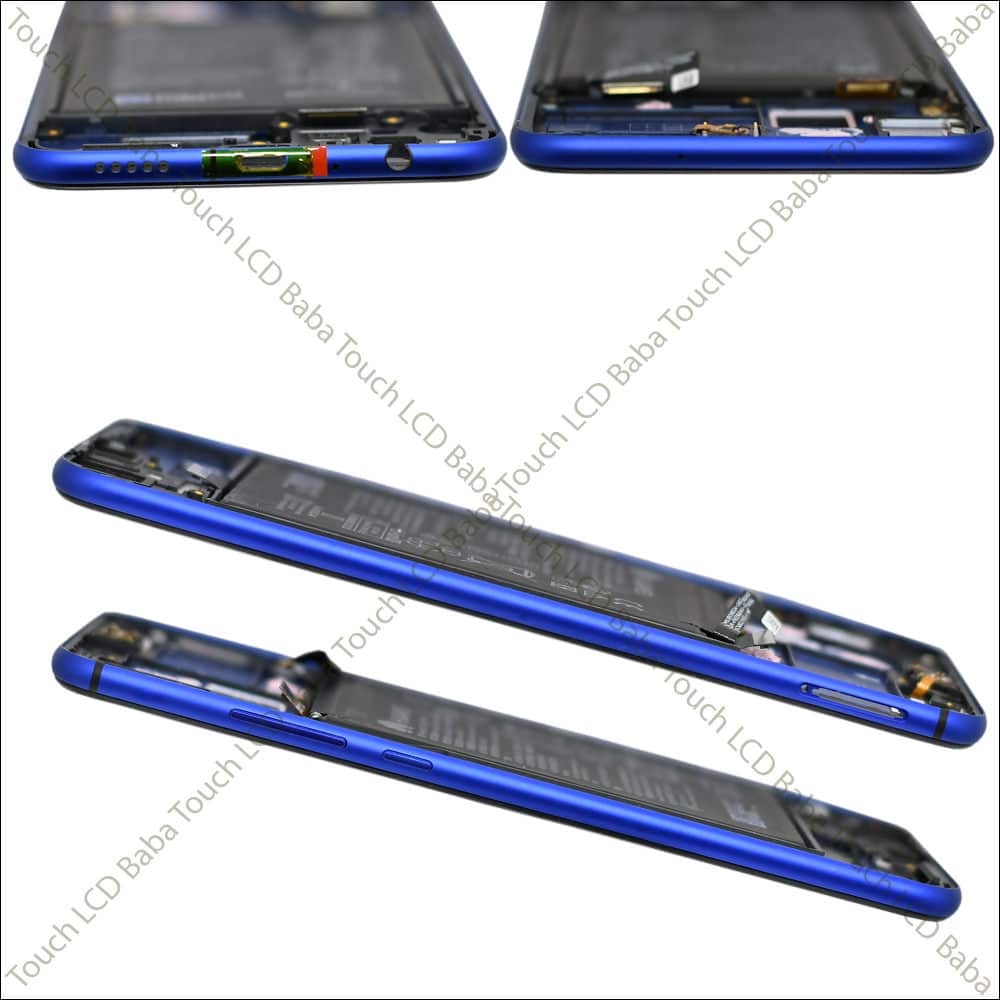

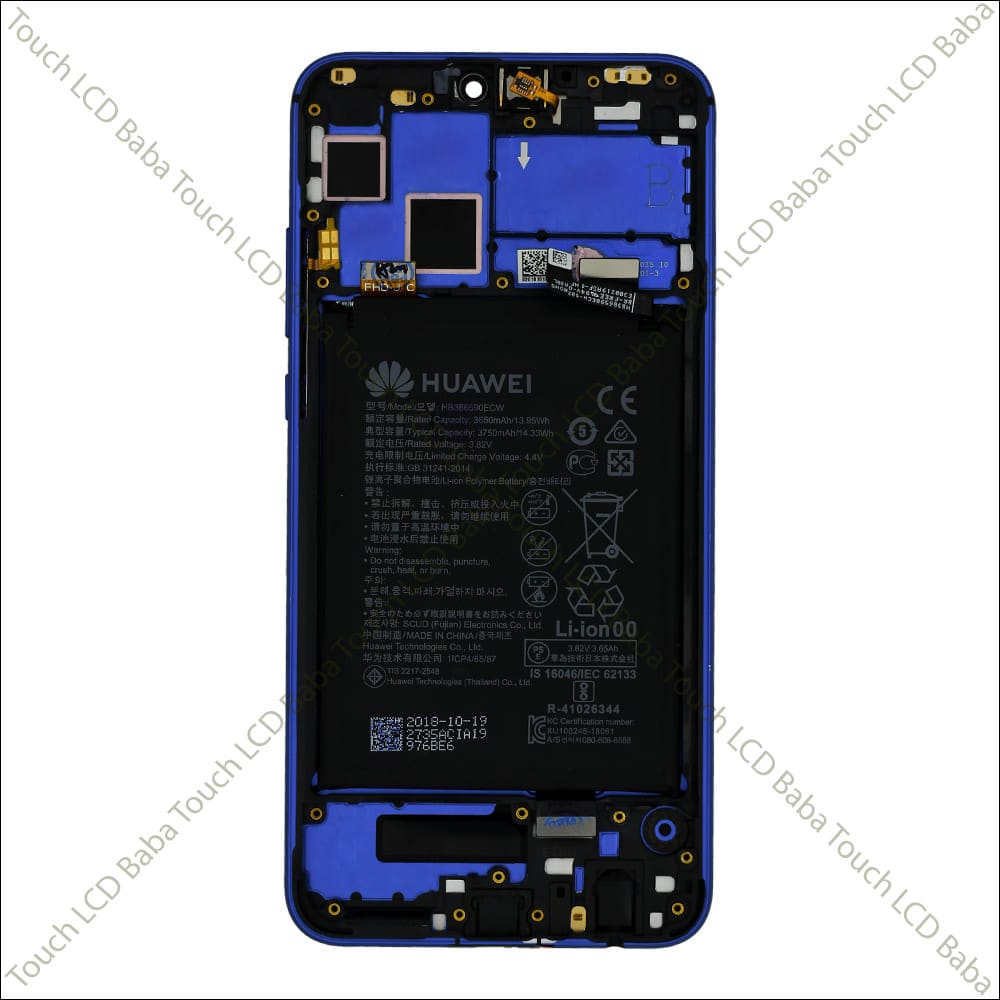

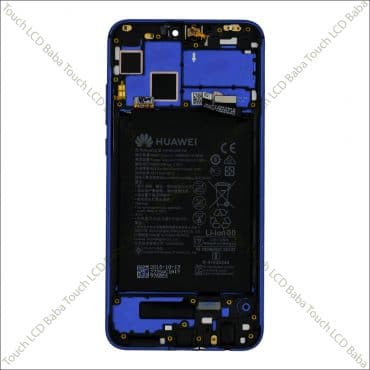

Honor 8x Display With Frame Photos.
These images show the Honor 8x display replacement you’ll get after your order. It is a complete combo of Honor 8x with an outer frame (with an outer ring having volume and on/off keys), which can replace a broken touchscreen glass or the display. After replacing the broken Honor 8x combo, you can use your mobile phone without further issues. See the Honor 8x Combo photos of the display, touch screen, frame, and battery.
Shipping, Return and Refund Policy
All our products come with 30 days return, refund, and replacement guarantee. To return a product, It should be in the same condition we sent. You can’t use or fix the new Honor 8x display if you want to return it. For complete details about Shipping, Returns and Warranty, please click here.
